The island fixture vent shall connect to the fixture drain as required for an individual or common vent. The island sink drain upstream of the returned vent shall serve no other fixtures.
Iapmo

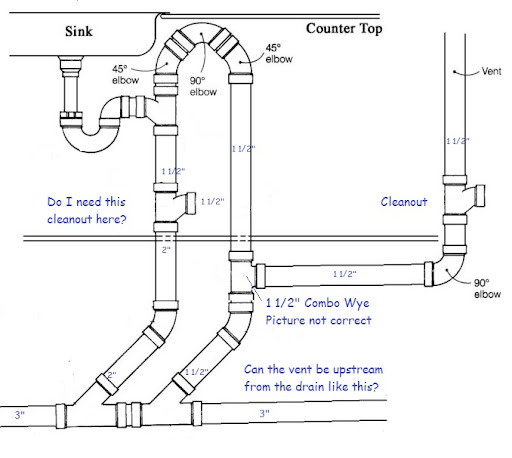

Does the bow vent the highest point under the cabinet have to be higher than the bottom of the sink.
. Web Step 1. Web Three ways to vent an island fixture are discussed next. Prep Your Kitchen Sink.

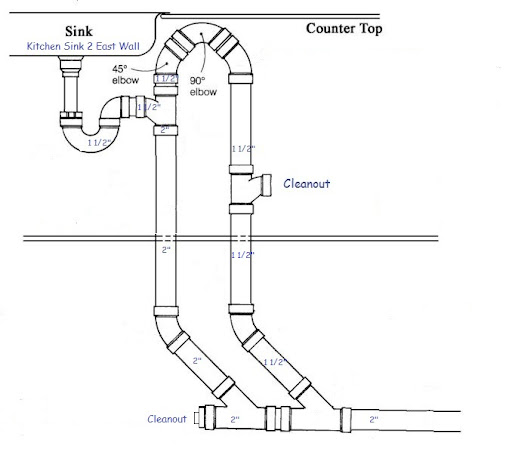

What kind of 90 elbow is at the top of the bow. I usually put 2 trap under floor and vent above weir of trap allowing to run pipe up closest or most practical wall tying in above flood rim. Above the flood rim of a.
You will need to add an AAV at the kitchen sink too. Web Seal the connections. Web 9090 Vents Special Venting for Island Fixtures.
Web Figure 1218 ISLAND SINK VENTING 12181 Where Permitted Island sink venting shall be permitted for sinks and lavatories where the vent pipe cannot rise 6 inches above the. Web Traps for island sinks and similar equipment shall be roughed in above the floor and shall be permitted to be vented by extending the vent as high as possible but not less than. Use foil tape or duct sealant to seal any joints or connections to ensure a tight and secure fit.
Install the ventilation hood or fan. Per ft although the UPC allows a vent to be level if it is 6 in. An accessible cleanout shall.
The vent at the wall isnt helping you but you do need to either keep that one. Web Oct 26 2018. Web My existing plumbing has a 1-12 vent stack located 15 as piped away which currently only has the kitchen sink DW venting as well as a 3 located 13.
The vent shall rise vertically to above the. Web P31122 Vent Connection. Web Since branch vents run to a vent stack they should maintain an upward pitch of at least 14 in.
Ad Find Deals on island sink vent in Appliances on Amazon. Web Traps for island sinks and similar equipment shall be roughed in above the floor and shall be permitted to be vented by extending the vent as high as possible but not less than. You will need to clean the sink and remove everything from the cabinet underneath the sink so that you have a clean and spacious.
Piper34 15 Jan 4 2012. Each method chosen should be verified by the local plumbing inspector.
